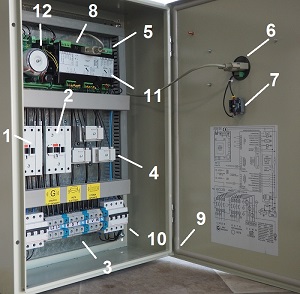

INSIDE A 3-PHASE AUTOMATIC CHANGEOVER SWITCH
This is a 3-phase changeover switch based on the contactors solution. This is the most flexible choice when it comes to a standby generator in a range of 6KVA up to 200kVA.
The configuration of two contactors is a safe and reliable solution. It is mandatory to use, as a safety precaution, a mechanical interlock. This prevents the KG and KM to be simultaneously closed. This is theoretically impossible because we already use auxiliary contacts. But adding a mechanical interlock will add a superior level of protection. The expected life of the coil of the contactor is about 20 to 30 years. But you have to maintain the operating temperature as lower as possible. The ambient temperature inside the panel over 50 degrees Celsius may reduce the life of the coil.
For this reason, we recommend that you store inside the panel a spare coil. In case of failure, you can replace the coil in a few minutes. We always recommend 230V coils instead of 400V coils.
[1] UTILITY POWER CONTACTOR [2] GENERATOR CONTACTOR [3] TERMINAL BLOCKS [4] CRs [5] ENGINE CONNECTIONS [6] ATS CONNECTION [7] EMERGENCY SWITCH [8] RELAY CONNECTIONS [9] IP65 STEEL COATED PANEL [10] CIRCUIT BREAKERS [11] INTERFACE BOARD
ATS PANEL FOR GENERAL PURPOSE APPLICATIONS PRICE LIST
BERNINI DESIGN SRL
ZONA INDUSTRIALE
OSTIGLIA - ITALY
[email protected]
SUPPORT
+39 335 70 77 148
When you apply the DC supply, the display indicates for a second, the version of the software (example 1.0.01) and the detected kind of battery (12V or 24V) Should the battery supply be lower than 7,5V, the BE242 will trigger the [ER.13] alarm code; the software will not run. The modes of operation are selected by pushbuttons and indicated by means of green LED indicators as shown below
Note: default programming for emergency input is ‘normally closed ‘. To inhibit the alarm [Er.08]
you are required to connect terminal JH4 to JH1 (Emergency input) on the back of the controller. You can reverse the contact by changing the type of the contact (see P35 on Table 7.04).
Every time the power supply is switched on, if the BE242 was in TEST or AUTO prior to power down, the Be242 returns to the “AUTO” mode. In the other cases, the Be242 will enter the OFF mode. The following table indicates the modes of operation.
| Mode | Pushbutton | Indication | Section |
| OFF | [ OFF ] | All turned Off, dot on the display | 2.1 |
| MANUAL | [ MAN ] | The green LED on the button | 2.2 |
| AUTO | [AUTO] | The green LED on the button | 2.3 |
| TEST | [TEST] | The green LED on the button | 2.4 |
| PROGRAMMING | see sections 6.0 and 13.0
- |
The display shows [ProG] | 6.0 |
| TROUBLESHOOTING | Various messages | 13.0 |
2.1 OFF mode
Push the button [OFF] to enter the OFF mode. The OFF mode clears the fault alarms and allows you to read or program parameters (section 6.0). The Display and LEDs are turned off and a dot on the display will blink slowly. Push one of the pushbuttons on the front panel to activate the display.
2.2 MANUAL mode
Note: default programming for emergency input is ‘normally closed ‘. To inhibit the alarm [Er.08]
you are required to connect terminal JH4 to JH1 (Emergency input). You can reverse the contact by changing the type of the contact (see P35 on Table 7.04).
The MANUAL mode allows manual control of the Engine and Contactors.
|
|
Instructions |
| Push the [MAN] pushbutton to select the MANUAL mode. Push the [START] pushbutton until the engine starts; the display indicates the message [. . . .] during the starting attempts (and [! ! ! !] during the preheat).
When the engine is running, the green LED turns on. To stop the engine, push the [STOP] pushbutton until the [StOP] message appears on the display. If the engine has already stopped, it is possible to reset the STOP sequence by pressing the [STOP] push button. |
| Select the MANUAL mode, start the engine (see above) and wait for voltage presence. |
Push the [ I ] (KG) pushbutton to close the contactor of the Generator. To transfer the Load to Mains, push the [I] (KM) pushbutton (the [KG] will open). To open a Contactor, push the [O] pushbutton. In manual mode, the CHANGEOVER timer lasts one second. The green indicators of voltage (Mains or Generator) blink when the voltage or frequency is out of limit (see the Mains and Generator parameters in table 701-7.02). The indicators are off when the voltage is lower than 48Vac
2.3 AUTO mode
Push the [AUTO] pushbutton until the green LED illuminates. The engine starts when the Be242 detects a Mains failure (see table 7.01A). The Contactor of the MAINS (KM) opens after the BREAKER timing. After the warm-up time, if the Voltage and Frequency are within the settings, the contactor of the Generator (KG) will close. If the Mains restores, the KG will open. The KM will close following a programmed changeover timing. The Engine will stop after a cooling down time (see tables 7.02 and 7.03). If the engine shuts down, the KM closes independently of the Mains status if the [P.48] is [ON] (NFPA-110 mode), otherwise, the KM will close only if the Mains is within programmed settings. In AUTO mode, the Be242 will periodically test the engine if the parameters [P.41] and [P.42] have been programmed. During this test, the green LED of the AUTO mode will continue to blink. In AUTO mode, the Be242 can start and stop the engine according to programmed inputs (see Tables 7.06 and 7.07 options [10] & [11] for example).
Note: when the Mains (or Generator) is in stable condition, the green LED ‘V’ is permanently ON. When voltage or frequency is outside limits, the green indicator ‘V’ blinks slowly (see table 7.01-7.02).
2.4 TEST mode
Push the [TEST] pushbutton until the green LED illuminates. The Be242 starts the engine and transfers the load to the Generator if [P.17] is [on]. To stop the engine, select the AUTO mode (if Mains is present) or select the OFF mode. If you push the [STOP] pushbutton when the Be242 is in AUTO or TEST, the [Er.09] will energize. To clear the alarm, select the OFF mode (section 8.0).
2.5 PROGRAM mode
The PROGRAM mode allows parameter programming and modifications of settings. A password can be set to protect the panel from unauthorized access (see 6.0).
Use [←F8] and [F9→] to select a menu. Use [ACK-F10] (see the layout in section 1.0) to display the name of the parameter. The OFF mode of operation shuts down the display and turns on the dot on the right side of it. Push a button to turn on the panel. The following table includes the functions of the display.
| Display Function | Display indications (*) | Pushbutton(s) | |
| The current of the Generator or Utility Power
(0 up to 1000A)
|
[AXXX] Ampere L1
[-XXX] Ampere L2 [_XXX] Ampere L3 |
[←F8] or [F9→] | A ac menu
yellow indicator |
| [A -G] | [ACK-F10] | ||
| The voltage of the Generator
(60V up to 998V)
|
[GXXX] Volt L1-L2
[-XXX] Volt L2-L3 [_XXX] Volt L1-L3 |
[←F8] or [F9→] |
V ac menu yellow indicator |
| [U -G] | [ACK-F10] | ||
| The voltage of the Mains
(60 V up to 998 V). If the Mains is simulated, the display will show the message [n-on] |
[nXXX] (V R-S)
[-XXX] (V S-T) [_XXX] (L R-T) |
[←F8] or [F9→] | |
| [U -on] | [ACK-F10] | ||
| Generator Frequency
(20Hz up to 70Hz)
|
[GXXX] Hz | [←F8] or [F9→] |
Hz/RPM menu yellow indicator |
| [H - G] | [ACK-F10] | ||
| Mains Frequency
(20Hz up to 70Hz)
|
[nXXX] Hz
|
[←F8] or [F9→] | |
| [H - n] | [ACK-F10] | ||
| Speed
(600RPM up to 4000RPM)
|
[XXXX] RPM
|
[←F8] or [F9→] | Hz/RPM menu
yellow indicator |
| [SPd] | [ACK-F10] | ||
| Battery Voltage
(5.5 Vdc up to 36 Vdc) |
[bXX.X] Vdc | [←F8] or [F9→] | Engine
yellow indicator
|
| [batt] | [ACK-F10] | ||
| Charger Voltage
(3.0 Vdc up to 36 Vdc) |
[cXX.X] Vdc | [←F8] or [F9→] | |
| Hours-count:0 up to 50,000 h. | [XXXX] h | [←F8] or [F9→] | h/Prog menu
yellow indicator |
| [Hour] | [ACK-F10] |
(*)NOTE: X indicates a numerical digit, if the measurement is out of range, the display will indicate [- - - -]
Section 4.0 Display messages and LOG Events
The Be242 displays alarms (table 4.10) and messages (table 4.20). The presence of alarms is indicated by the blinking message [ ALAr.]. Push the [→F9] pushbuttons to display the alarms one by one. Push the [←F8] pushbutton to display additional information (section 8.0).
Table 4.10: Alarm messages
| Display
Message |
Description of the Alarm | Display Message | Description of the Alarm |
| [Er.01]
|
Over Frequency Shutdown (see [P.12]) | [Er. 14]
|
Low Oil Pressure Shutdown
(Pressure switch connected to input #35) |
| [Er.02]
|
Engine Belt Break Shutdown (see [P.26]) | [Er. 15]
|
Temperature Switch Shutdown
(Temperature switch connected to Input #34) |
| [Er.03]
|
Remote LOCK Shutdown (see 7.07 option [13]) | [Hi-C] | Over Current Shutdown or Warning (see [P.13]). |
| [Er.04]
|
Alternator Failure Shutdown | [Hi-U]
|
Over Voltage Shutdown (see [P.10]) |
| [Er.05]
|
Overload Warning (see 7.07 option [20]) | [Lo-U]
|
Under Voltage Shutdown (see [P.09]) |
| [Er.05]
|
Overload Shutdown (see 7.07 option [21]) | [InP.2] | Input 2 Shutdown / Warning (see 7.07) |
| [Er.06]
|
Under Frequency Shutdown (see [P.11]) | ||
| [Er.07]
|
Fail To STOP Shutdown (see parameter P.34, section 7, table 7.04) | [InP.3] | Input 3 Shutdown / Warning (see 7.07) |
| [Er.08]
|
Emergency Shutdown (see parameter P.35, section 7, table 7.04) | [InP.4] | Input 4 Shutdown / Warning (see 7.07) |
| [Er.09]
|
Emergency Shutdown triggered by Front Panel (Stop or [0] pushbutton) | [FUEL] | Low Fuel level warning |
| [Er.10]
|
Maintenance SERVICE warning
(see parameters P44,P45 and P46) |
[rEnt] | The rental contract is going to expire (48 hours remaining). Push [←F8] to display the value. |
| [Er.11]
|
Fail To START Shutdown | [FAIL] | There is an internal failure or memory error in the BE242 controller (see 12.3) |
| [Er.12]
|
Low Fuel Shutdown | [Er. 13] | Battery Voltage Alarm. Push [←F8] to display the value. (allowed battery limits: 11,8V-15,5V & 23,6V-31V). Under 7,5V, the Be242 controller will not work. |
4.20 Miscellaneous messages & description
| [rESt] | The Be242 is counting the rest time between the starting attempts | [ProG] | The Be242 is in program mode |
| [n-on] | MAINS is simulated by an input programmed with the option [15] (see table 7.07). |
[. . . .] |
The Be242 is cranking the engine |
| [ ' ' ' ' ] | The Be242 is performing the pre-glow (P22) | [tEst] | The Be242 is in Test mode |
| [StoP] | The Be242 is stopping the engine (P25) | [ - - - - ] | Measurement out of range or disabled |
| [U-uP] | Warm-up time of the engine before closing the contactor of the generator (P23). |
[CooL]
|
The engine is running offload for cooling. |
| [ dEL] | The delay time before cranking (P.19, table 7.03A) |
4.30 LOG EVENTS
To have access to the LOG events follow the instructions:
- Push the [OFF] button.
- Push and hold the [STOP] button until the message [Hist.] appears on display (approx. 10 seconds).
- Release the [STOP] button.
- Using [←F8] and [F9→] you can browse the events E01 up to E100.
- Push the [STOP] button to display the code of the EVENT (see table 4.10). The message [----] indicates ‘No Event’ in the memory.
- To quit the LOG EVENTS push the [OFF] button
Note: to cancel the LOG EVENTS push the [←F8] and [F9→] buttons simultaneously until the display blinks one time (approx. 10 seconds).
Section 5.0 LED indicators
5.1 Lamp and Display Testing
To test the LEDs and DISPLAY push the [OFF] pushbutton; the display turns off (OFF mode of operation). Push and hold the [←F8] and [F9→] pushbuttons simultaneously. The LEDs and DISPLAYs remain energized as long as the pushbuttons are pressed and held together
Section 6.0 Programming / Reading the Parameters
The 4-digits display indicates the code of a parameter and its setting. Section 7.0 lists all parameters. To enter the Programming Mode, use the following instructions. To use a password see sections 6.40, 6.50 and 6.60. Monitoring via TCP-IP is also allowed.
6.10 Enter the Programming Mode
1) - Provide a voltage from a battery supply of over 11.5 V. Push the [OFF-F7] pushbutton to enter the OFF mode; the LEDs and display turn OFF (the dot on the right side of the display will start to blink)
2) - Push and hold the [F9→] and [ACK-F10] pushbuttons simultaneously for about 5 seconds, until the yellow Led [h/Prog.] starts to blink. When the display indicates [ProG], release the buttons.
3) - If the Be242 is password protected (*), the messages [PASS] and [42.42] will appear in sequence; you are required to follow the instructions of Table 6.11. If the Be242 is not password protected, the programmable parameter [P.0] will be displayed and the Be242 is ready for programming (section 6.12, step-2).
(*) Note: the password consists of 2 groups of digits ranging from 0 to 99. Example: [12.34]; 12 is the 2-digit code on the left, and 34 is the 2-digit code on the right.
TABLE 6.11: Enter the PASSWORD
| 1) - Push [TEST] or [AUTO] in order to choose the proper code (between 00 and 99, except 42).
2) - Push [F9→] to select the 2 digits on the right side. 3) - Push [TEST] or [AUTO] in order to choose the proper code (between 00 and 99, except 42). 4) - Push [ACK-F10] to confirm the password; if the password is ok, the Be242 will indicate [P.0] and the unit is ready for programming. If the password is wrong, the display will indicate [4242] and you are required to insert the correct password. If you lose the password, the unit must be returned for service.
|
6.12 Programming
1) - Enter the Programming mode (see section 6.10).
2) - Press the [←F8] or [F9→] pushbutton to select a parameter (see the list in section 7.0).
3) - To adjust the parameter, press [START-F1] and [TEST ↑] (or [AUTO ↓]) simultaneously.
(example: [P.10] = [500]; the Overvoltage limit is set to 500 Volt. If you want to set 450, push and hold [START-F1] and [AUTO ↓] until the display indicates 450 )
4) - To adjust additional features of the same parameter, press [STOP-F2] and [TEST ↑] (or [AUTO ↓]) simultaneously (example: [P.10] [10'']; the timing delay of Overvoltage is set to 10 seconds)
5) - Press the [←F8] or [F9→] pushbutton to select another parameter.
6) - Follow the instructions of sections 6.13 or 6.14 according to your needs.
6.13 Saving
Press and hold the [ACK-F10] and [F9→] pushbuttons simultaneously until the [SaVE] message appears (approximately 5 seconds); the Be242 saves the settings and will enter the OFF mode. You can select the mode of operation as indicated in section 2.0.
Note: if the memory fails, the message [FAIL] will appear. Try again to save or remove the power supply. If the message persists, the Be242 is damaged and should be returned to Bernini Design for repair
6.14 Exit without Saving
Press the [OFF] pushbutton to enter the OFF mode without saving the parameters. You can select a mode of operation as indicated in section 2.0
6.20 Re-programming Default setting
The parameters of the Be242 are programmed in the factory with default settings (section 7.0). To restore them, enter the Programming Mode (section 6.10). When the message [P.0] appears, follow the instructions
1) - Press and hold the [←F8] and [F9→] pushbuttons simultaneously until the display blinks twice. Select options 2A or 2B according to your needs.
2A) - Press the [OFF] pushbutton to exit the procedure without saving the parameters.
2B) - Press and hold the [ACK-F10] and [F9→] pushbuttons simultaneously until the [SAVE] message appears (approximately 5 seconds); the Be242 saves the settings and the display will indicate [P0]. Push the [OFF] pushbutton in order to enter the OFF mode.
6.30 Reading the parameters
To read the parameter settings, follow the instructions:
1) - Press the [OFF] pushbutton until the LEDs and display turn off (OFF mode of operation).
2) - Push the [←F8] or [F9→] pushbutton to select a parameter (section 7.0).
3) - Push [START-F1] to display the setting of the parameter (example: [P.10] > [450]; the Overvoltage limit is set to 450 Volt).
4) - Push [STOP-F2] to display the setting of the sub-parameter (example: [P.10] > [2'']. The timing delay of Overvoltage is set to 2 seconds).
5) - Push the [←F8] or [F9→] pushbutton to select another parameter.
NOTE: if the pushbuttons remain inoperative for more than 5 minutes, the Be242 enters the OFF mode.
6.40 Activating the password
1) - Enter the programming mode as indicated in section 6.10.
2) - When the display shows [P.0], push the [ACK-F10] pushbutton for about 10 seconds until the display shows [PPPP]. When the display will indicate [4242], release the button. The two digits on the right will blink.
3) - Push [TEST] or [AUTO] in order to choose a code.
4) - Push [←F8] to select the 2 digits on the left side. Repeat step 3) in order to choose a code
5) - Press the [OFF] pushbutton if you want to exit the procedure without activating the password.
6) - Press and hold the [ACK-F10] and [F9→] pushbuttons simultaneously until the [SAVE] message appears; the Be242 saves the password and remains in PROGRAM mode. To exit, push the OFF push button. You can change the password at any time as indicated in section 6.50.
6.50 Changing the password
1) - Enter the programming as indicated in section 6.10 and table 6.11. When the display indicates the parameter [P.0], push and hold the [ACK-F10] pushbutton for about 10 seconds until the messages [PP.PP] and [4242] appear. The two digits on the right side of the display will blink.
2) - Push [TEST] or [AUTO] in order to choose a code.
3) - Push [←F8] to select the 2 digits on the left side. Repeat step 3) in order to choose a code
4) - Press the [OFF] pushbutton if you want to exit the procedure without activating the password.
5) - Press and hold the [ACK-F10] and [F9→] pushbuttons simultaneously until the [SAVE] message appears (approximately 5 seconds); the Be242 saves the password and remains in PROGRAM mode. To exit, push the OFF push button.
6.60 Removing the password
1) - Enter the programming mode as indicated in section 6.10 part 3 (you are required to use the old password).
2) - When the display indicates the parameter [P.0], push and hold the [ACK-F10] pushbutton, for about 10 seconds until the display indicates in sequence [PPPP] and [4242]. The two digits on the right side will start to blink. The code [4242] disables the use of the password. Follow step 3 of 4 according to your needs.
3) - Press the [OFF] pushbutton if you no longer want to remove the password (exits the procedure).
4) - Press and hold the [ACK-F10] and [F9→] pushbuttons simultaneously until the [SAVE] message appears (approximately 5 seconds); the Be242 saves the code [4242] that disables the password. The Be242 remains in PROGRAM mode. To exit, push the OFF push button.
6.70 Losing the password
In case you lose the password follow the steps:
- remove the supply
- push and hold the [ACK] and [>] push buttons
- apply the supply; a 4-digit code appears on the display
- send the code to [email protected] together with your credentials.
- you will receive the new password in 24 hours.
| Table 7.01A - Mains Failure Control Note: [ xx " ] = seconds, [ xx ' ] = minutes, [xxh ] = hours | ||||
| Parameter Code & Description | Default | Min | Max | |
| P.0 | Mains Contactor Control (KM). If the Mains Failure persists for more than [P.0] (seconds or minutes), the Mains contactor will open and the [P.1] timer will start to count. The Mains contactor will close only after the [P.2] timing. | [ 5’’] | 0 | 59 mins |
| P.1 | Mains Failure time. After the [P.0] timing (see above), the engine will start if the Mains Failure persists for the [P.1] time. | [ 5’’] | 0 | 23 h |
| P.2 | Mains Restore time. The Be242 transfers the Load to the Mains once the MAINS is stable for at least [P.2] (seconds, minutes or hours). During [P.2], the engine will continue to run ON-LOAD. After [P.2], the [P.24] timer will take place to run the engine OFF-LOAD (the contactor of the generator will open). | [ 5’’] | 0 | 23 h |
NOTE: WHEN VOLTAGE OR FREQUENCY IS OUTSIDE LIMITS, THE GREEN INDICATORS BLINK SLOWLY. DANGEROUS VOLTAGE MAY BE PRESENT IN THE CONTROLLER EVEN IN CASE THE INDICATORS ARE OFF
| Table 7.01B - Mains Failure Control Note: [ xx " ] = seconds, [ xx ' ] = minutes, [ oFF ] = disabled | |||||
| Parameter Code & Description | Default | Min | Max | Options | |
| P.3 | Contactors changeover. This timing introduces a delay between the switching of the contactors. | [ 2’’] | 0.1secs | 15.0secs | - |
| P.4 | Under voltage limit. If the Phase-to-Phase voltage falls
under this limit, the [P.0] timer will energize. |
[320] | 60V | 998V | [oFF] |
| P.5 | Overvoltage limit. If the Phase-to-Phase voltage rises
above the limit, the [P.0] timer will energize. |
[500] | 60V | 998V | [oFF] |
| P.6 | Under Hz limit. If the Phase-to-Phase frequency falls
under the limit, the [P.0] timer will energise. |
[47.0] | 20.0Hz | 70.0Hz | [oFF] |
| P.7 | Over Hz limit. If the Phase-to-Phase frequency rises
above the limit, the [P.0] timer will energise. |
[53.0] | 20.0Hz | 70.0Hz | [oFF] |
| P.8 | Phase Selection. It allows 3-Phase or Single-Phase control of voltages and currents. The following options are available:
[0] 3 Phase V Mains & 3 Phase Generator [1] 3 Phase V Mains & 1 Phase Generator [2] 1 Phase V Mains & 3 Phase Generator [3] 1 Phase V Mains & 1 Phase Generator |
[0] | 0 | 3 | - |
| . | |||||
|
Table 7.02A - GENERATOR PARAMETERS Note: [ xx " ] = seconds, [ xx ' ] = minutes, [ oFF ] = disabled |
||||||
| Parameter Code & Description | Mode (°) | Default | Min | Max | Options | |
| P.9 | Under voltage (Push F1)
xxxxxxxxxxxxxxxxx
|
1
|
[320] | 60 V | 998 V | [oFF] |
| Delay (Push F2) | [ 6" ] | 1 sec | 15 secs | - | ||
| P.10 | Over voltage (Push F1) | 2
|
[500] | 60 V | 998 V | [oFF] |
| Delay (Push F2) | [ 2" ] | 1 sec | 15 secs | - | ||
| P.11 | Under Hz (Push F1) | 1
|
[47.0] | 20.0 Hz | 70.0 Hz | [oFF] |
| Delay (Push F2) | [ 6'' ] | 1 sec | 15 secs | - | ||
| P.12 | Over Hz (Push F1) | 2
|
[53.0] | 20.0 Hz | 70.0 Hz | [oFF] |
| Delay (Push F2) | [ 1" ] | 1 sec | 15 secs | - | ||
| P.13
(*) |
Current limit Warning (Push F1) | 3
|
[oFF] | 10 A | 999 A | [oFF] |
| Delay (Push F2) | [ 1" ] | 1 sec | 15 mins | - | ||
| P.14
(*) |
Over-current shutdown (Push F1) | 1
|
[oFF] | 10 A | 999 A | [oFF] |
| Delay (Push F2) | [ 1" ] | 1 sec | 15 mins | - | ||
(°) Mode 1: The engine shuts down after cooling down time ([P.24]). (°) Mode 2: The engine shuts down without cooling down time.
(°) Mode3: The Be242 provides a warning if the parameters rise above the setting for the specified timing.
(*) The setting is allowed in step 5 Amps by using the push button on Be242 or in the step of 1Amp by using programming by Computer.
NOTE: WHEN VOLTAGE OR FREQUENCY IS OUTSIDE LIMITS, THE GREEN INDICATORS BLINK SLOWLY. VOLTAGE MAY BE PRESENT IN THE CONTROLLER EVEN IN CASE THE INDICATORS ARE OFF
| Table 7.02B - GENERATOR PARAMETERS Note: [ oFF ] = disabled, [ on ] = enabled | |||||
| Parameter Code & Description | Default | Min | Max | Options | |
| P.15 | Alternator failure options. The alarm [E04] energizes if the voltage (or the frequency) is lower than the setting of P.9 (or P11) for more than 150 seconds. | [oFF] | - | - | [on] [oFF] |
| P.16 | Alternator number of Poles. Options [2] or [4] allow you to display the engine speed. | [ 4 ] | 2 | 4 | - |
| P.17 | Generator Contactor Control. The option [off] inhibits Load transfer to the generator in TEST mode (or remote TEST) when MAINS is present. | [oFF] | - | - | [on] [oFF] |
| P.18 | CT size (/5Aac). | [100] | 50 A | 1000 A | - |
| Table 7.03A - ENGINE PARAMETERS Note: [ xx " ] = seconds, [ xx ' ] = minutes, [ oFF ] = disabled | |||||
| Parameter Code & Description | Default | Min | Max | Options | |
| P.19 | Crank delay (it delays the cranking) | [ 2" ] | 0 | 15 secs | - |
| P.20 | Crank time (maximum cranking time if the engine fails to start during the attempt) | [ 5" ] | 1 sec | 15 secs | - |
| P.21 | Rest time (pause of time between starting attempts) | [ 5" ] | 3 secs | 15 secs | - |
| P.22 | Pre-glow time (see ‘Modes’ for the mode of operation. (Push F1) | [ oFF ] | 1 sec | 59 mins | [ oFF ] |
| Modes as indicated below (Push F2) | [ 1 ] | - | - | 1-2-3-4 | |
| P.23 | Engine Warm-up time | [ 15" ] | 0 | 59 mins | - |
| P.24 | Engine Cooling time | [ 15" ] | 0 | 59 mins | - |
| P.25 | Stop Solenoid timing (Energized to stop) | [ 5" ] | 1 sec | 59 mins | - |
| P.26 | Alternator Crank termination (Push F1) | [ oFF ] | 3.0 V | 30.0 V | [oFF] |
| Belt break setting (Push F2) | [ oFF ] | 3.0 V | 30.0 V | [oFF] | |
| P.27 | Crank termination setting (Generator Voltage) | [ 100 ] | 60 V | 998 V | [oFF] |
| P.28 | Crank termination (Generator Frequency) | [30.0] | 20.0 Hz | 70.0 Hz | [oFF] |
| Table 7.03B - ENGINE PARAMETERS Note: [ xx " ] = seconds, [ xx ' ] = minutes, [ oFF ] = disabled | |||||
| Parameter Code & Description | Default | Min | Max | Options | |
| P.29 | NOT USED | [ oFF ] | |||
| P.30 | NOT USED | [ oFF ] | |||
| P.31 | Crank attempts (numbers) | [ 3 ] | 3 | 15 | - |
| P.32 | Purge timing (for Gas fuelled engine) | [ 1" ] | 1 sec | 15 secs | - |
| Table 7.04 - ALARM OPTIONS Note: [ xx " ] = seconds, [ xx ' ] = minutes, [ oFF ] = disabled | |||||
| Parameter Code & Description | Default | Min | Max | Options | |
| P.33 | Alarm bypass (for Oil, Temperature, Auxiliary 2-3-4 alarms) | [ 5" ] | 2 secs | 90 secs | - |
| P.34 | Fail to stop alarm control (oFF = inhibited, on = enabled) | [oFF] | - | - | [oFF]/ [on] |
| P.35 | Emergency contact type (Input JH1-JH4). It generates the alarm [Er.08]. | [n.c.] | - | - | [n.o. / n.c.] |
| P.36 | No fuel bypass timeout (it starts to count when you activate the Low Fuel Input, terminal #9. It shuts down the engine after timeout). | [ 5' ] | 15 secs | 99 mins | [oFF] |
| P.37 | NOT USED | [ oFF ] | |||
| P.38 | NOT USED | [ oFF ] | |||
| P.39 | Engine Temperature Switch type (input # 12) | [n.o.] | - | - | [n.o. / n.c.] |
| Table 7.05 - MISCELLANEOUS Note: [ xx " ] = seconds, [ xx ' ] = minutes, [ oFF ] = disabled | |||||
| Parameter Code & Description | Default | Min | Max | Options | |
| P.40 | EJP time | [ 5" ] | 1 sec | 99 mins | - |
| P.41 | Periodic Test interval (see 16.10) | [oFF] | 2 hours | 9999 h | [oFF] |
| P.42 | Periodic Test duration (see 16.10) | [ 5' ] | 1 min | 99 mins | - |
| P.43 | Test timeout ([OFF]= no timeout). It limits the running time in case of a TEST initiated by a MODBUS command. Idle speed control (see application note in section16.60) | [ 5' ] | 1 min | 99 mins | [oFF] |
| P.44
P.45 P.46 |
Maintenance SERVICE 1 / 2 / 3
(for the use, see section 16.40) The alarm generated by these parameters only provides a warning. |
[oFF]
|
1 h
|
9999 h | [oFF] |
| P.47 | Rental Contract Setting (see section 16.40) | [oFF] | 1 h | 9999 h | [oFF] |
| P.48 | NFPA - 110 Level 1&2 | [on] | - | - | [on]/[oFF] |
| P.49 | NOT USED | [ 1] | |||
| P.50 | Horn timeout (see section 8.0) | [ 5" ] | 5secs | 15 mins | [oFF] |
| P.51 | Hour Counter set (over 9999, a dot will appear to indicate a value multiplied by 10. Example 3250. will indicate 32500 hours. In this case the resolution is 10 hours). | [ 0 ] | 0 h | 50.000 | [oFF] |
| Table 7.06 - Programmable inputs (see options list in table 7.07) | ||||||||
| Parameter | Options | Default | Parameter | Options | Default | |||
|
[InP.1] NOT USED |
[ 2 ] | NONE | [ 2 ] |
[InP.3] (terminal 10 on B242RB)
|
Option available | [0] - - - [28] | [10] | |
| Contact type | [n.o.][n.c.] | [n.o.] | ||||||
|
[InP.2] (terminal 13 on B242RB) |
[ 13 ] | [0] - - - [28] | [13] |
[InP.4] (terminal 14 on B242RB)
|
Option available | [0] - - - [28] | [15] | |
| Contac_t type | [n.o.][n.c.] | [n.o.] | Contact type | [n.o. ][n.c.] | [n.o.] | |||
_
| Table 7.07 - Input Options List
|
|||||
| Option | Option | ||||
| [ 0 ] | Off: disables the input | [ 14 ] | Generator simulation ON | ||
| [ 1 ] | Immediate Stop | [ 15 ] | Mains Simulated ON | ||
| [ 2 ] | Bypass and Stop | [ 16 ] | Front panel LEDs test | ||
| [ 3 ] | Cooling and Stop | [ 17 ] | Horn silence | ||
| [ 4 ] | Bypass+Cooling and Stop | [ 18 ] | Display Right Push button | ||
| [ 5 ] | Warning only (^) | [ 19 ] | Display Left Push button | ||
| [ 6 ] | Bypass and Warning | [ 20 ] | Overload Input Warning | ||
| [ 7 ] | Remote Manual Mode (^^) | [ 21 ] | Overload Input Shutdown | ||
| [ 8 ] | Remote Auto Mode (^^) | [ 22 ] | KG Forced closed | ||
| [ 9 ] | Remote Off Mode (^^) | [ 23 ] | KM Forced closed | ||
| [ 10 ] | Remote Engine Test | [ 24 ] | KG LED Feedback | ||
| [ 11 ] | Remote Generator Test | [ 25 ] | KM LED Feedback | ||
| [ 12 ] | Ejp function | [ 26 ] | Idle Engine | ||
| [ 13 ] | Remote LOCK | [ 27 ] | Manual START push button | ||
| [ 28 ]
|
Manual STOP push button | ||||
(^) The Be242 detects the alarm if the engine is running
(^^) We recommend the use of an AUTO-OFF-MAN switch
| 7.08 - Programmable Outputs | ||||||
| Parameter Code & description | Default | Parameter Code & description | Default | Options | ||
| [Out.1] | Output 1 (terminal 6 HORN) | [ 39 ] | [Out.3] | NOT USED [ 54 ] | ||
| [Out.2] | Output 2 (terminal 5 PREGLOW) | [ 46 ] | [Out.4] | NOT USED [ 57 ] | ||
| Table 7.09 - Output Options Table |
| Option & description | Option & description | ||
| [ 0 ] | Output is disabled | [32] | Alarm from Input 2: Shutdown/Warning |
| [ 1 ] | Under Frequency Shutdown | [33] | Alarm from Input 3: Shutdown/Warning |
| [ 2 ] | Over Frequency Shutdown | [34] | Alarm from Input 4: Shutdown/Warning |
| [ 3 ] | Over Current Shutdown | [35] | NOT USED |
| [ 4 ] | Over Current Warning | [36] | NOT USED |
| [ 5 ] | Overload Warning or Shutdown (^^^) | [37] | Cumulative Alternator Alarms |
| [ 6 ] | Over Voltage Shutdown | [38] | Common Fuel Alarms |
| [ 7 ] | Under Voltage Shutdown | [39] | HORN |
| [ 8 ] | Alternator Failure Shutdown | [40] | Crank Delay (Start Warning) |
| [ 9 ] | NOT USED | [41] | Presence of Nominal Mains Parameters |
| [10] | Low Oil Pressure Shutdown | [42] | Mains Failure Timing |
| [11] | NOT USED | [43] | Mains Restore Timing |
| [12] | NOT USED | [44] | KG Status |
| [13] | Temperature Switch Shutdown | [45] | KM Status |
| [14] | NOT USED | [46] | Pre-glow MODE 1/2/3/4 |
| [15] | Low Battery Voltage Warning | [47] | NOT USED |
| [16] | High Battery Voltage Warning | [48] | RENT<48h |
| [17] | Low Fuel Shutdown (switch) | [49] | RENT=0h (Expired) |
| [18] | NOT USED | [50] | Engine Running Status |
| [19] | Fuel Reserve Warning (switch) | [51] | Presence of Nominal Generator Voltage |
| [20] | NOT USED | [52] | Be242 in OFF MODE (Status) |
| [21] | NOT USED | [53] | Be242 in MANUAL MODE (Status) |
| [22] | Emergency Stop Shutdown (Er08) | [54] | Be242 in AUTO MODE (Status) |
| [23] | Stop Push button Used in AUTO (Er09) | [55] | Be242 in TEST MODE (Status) |
| [24] | Maintenance SERVICE 1 (Er10) | [56] | Be242 in LOCK MODE (Status) |
| [25] | Maintenance SERVICE 2 (Er10) | [57] | Be242 runs the Automatic Periodic Test |
| [26] | Maintenance SERVICE 3 (Er10) | [58] | Cooling Timing |
| [27] | Engine Belt Break Shutdown | [59] | Warm up Timing |
| [28] | Fail To START Shutdown | [60] | Cycling mode (Logical OR of engine running and stop solenoid) |
| [29] | Fail To STOP Shutdown | [61] | Start Pilot repeat output (it repeats the crank output terminal #9) |
| [30] | Idle Speed (see section 16.60) | - | -- |
| [31] | NOT USED | - | -- |
Section 8.0 - Alarms, Warnings and Shutdowns
The Be242 features Shutdowns (the engine stops) and Warnings (the engine will continue to run) and provides:
- A) - a general indication of alarm presence by means of the message [ALAr.] on the display
- B) - 2 configurable outputs for specific alarm indications with more than 40 options (see 7.08 and 7.09)
- C) - symbols on the front panel to indicate the most important alarms
- D) - display messages indicating warnings and shutdowns (see Table 4.1)
- E) - a push button to silence the Horn ([ACK-F10])
Terminal #6 is pre-configured for HORN output (Option 39). A HORN should be externally provided. To silence the HORN, push the [ACK-F10] push button or wait for the [P.50] to expire (see section 7.05). If the [P.50] is set to [OFF], the only way to silence the Horn is by means of the [ACK-F10] push button.
To browse the alarm memory push the [→F9] push button. To display alarm details, push the [←F8] push button. To clear the alarm from the panel, remove the cause of the alarm and then press the [OFF] push button. Table 4.10 in section 4.0 indicates all alarms.
Section 9.0 Hour Meter
To clear or pre-load the counter, use the following instructions:
1) - Enter the programming mode as indicated in sections 6.10 & 6.20
2) - Select the parameter [P.51] by means of the [←F8] or [F9→] push button.
3) - Press the [START-F1] and [TEST ↑] to set a value. If you set [0], you will cancel the [h-counter]. If you set a value between 1 and 50000, you will pre-set the counter. Follow steps 4A) or 4B) according to your needs.
4A) - Press and hold the [ACK-F10] and [F9→] push buttons simultaneously until the [SaVE] message appears (for about 5 seconds); the Be242 saves the hour counter in the memory and will enter the OFF mode.
4B) - Press the [OFF] push button to exit the procedure without modifying the counter.
Section 10.0 Be242 setting required for PUMP SET application
If you use the Be242 to control a PUMP SET, we recommend the use of the following settings:
|
Parameter |
Table 10.0: Recommended settings setup
|
| [P.15] | [oFF] (This disables the 'alternator failure alarm') |
| [Inp.4] | [ 15 ] (This selects the Mains Simulation input mode). Connect a switch (or level switch) to terminal #14 in order to control the set by remote |
| [P.41] | [oFF] (This disables the Periodic Test interval) |
| [P.0] | [ 0 ] (This disables the Breaker delay time) |
| [P.1] | According to your needs; the engine will start after a delay |
| [P.2] | According to your needs; the engine will stop after a delay |
Section 11.0 Engine Running Detect (Charger Alternator)
The Be242 inhibits the starter motor when the engine starts running. When the engine is not running, voltage in terminal D+/WL of the charger alternator (input #15) is 0 V. As soon as the Be242 starts the engine, a voltage appears in the D+/WL terminal (0.8 to 2.5 V). When the engine starts running, the voltage of the D+/WL terminal increases by up to 3 V - 6 V. When the engine runs, the voltage reaches 14 V (28 V) needed to charge the battery. The safest point to disconnect the starter motor is between 6 V to 10 V. The default parameter of [P.26] is 8.0 V. This value is recommended for engines using 12 V batteries. For 24 V batteries, we recommend that you set the threshold to 16 V.
For safe calibration, be sure that the green ‘ENGINE RUNNING’ LED on the front panel is off during all of the starting attempts. The Charger Alternator voltage can be displayed in the 'Engine menu' as indicated in the section 3.0. For Flywheel chargers, the reading is not accurate. The [P.26] setting, in this case, expresses only a proportional factor.
The Be242 also uses the output of the Generator in order to disconnect the crank motor. Parameters [P.27] and [P.28] set the crank termination. These parameters do not affect the status of the green ‘ENGINE RUNNING’ LED.
NOTE: THE ‘ENGINE RUNNING’ LED MUST BE LIT WHEN THE ENGINE RUNS. USING THE ENGINE WITHOUT THIS SIGNAL MAY BE DANGEROUS.
Normally, using a diesel engine, we recommend enabling the BELT BREAK protection. This is accomplished by programming a voltage setting in the [P.26] sub-menu. To test the efficiency of this protection, disconnect terminal D+ from the charger alternator and connect to ground the #15 terminal. This protection is delayed by 15 seconds.
Section 12.0 - Memory Reset
12.3 - To clear the Memory
- Remove the supply. Push and hold the [I-F3] & [I-F5] push buttons simultaneously and apply the Vdc supply.
- As soon as the message AUTO-TEST appears, release the push buttons; the display will indicate [ F1].
- Push [F1] and then push, one by one, all push buttons indicated by the message on display.
- After pushing the last push button ([AUTO]), the message [-EPP] will appear; wait a few seconds.
- The memory, now, is erased. The Be242 will use the factory-programmed parameters (defaults).
- Remove the supply and re-program the controller according to your need. We always recommend that you program a password in order to limit the access (see section 6.40).
Section 13.0 Troubleshooting Guide
The Basic Troubleshooting Guide is intended to provide you with a guide to problems that you may experience with the Be242. We recommend that you disconnect all removable terminal blocks from the BE242RB interface board. This procedure should only be carried out by qualified personnel.
To exit the Troubleshooting, remove the Vdc supply at anytime
! W A R N I N G ! High voltage is inside this instrument. To avoid electric-shock hazards, operating personnel must not remove the protective cover. Do not disconnect the Earth connection. Any interruption of the grounding connection can create an electric shock hazard. Before making external connections, always ground the B242 first by connecting the control panel to the ground.
Follow the instructions:
- A) - Remove the battery power supply; disconnect all connectors, and disconnect the Mains/Generator plugs.
- B) - Push and hold the [ACK-F10] push button, apply the Vdc power supply; all LEDs and Display turn on.
- C) - Release the button when you have verified all indicators; the LEDs will turn off and the message [- - - -] will be displayed.
NOTE - At this stage of the TEST, if the display indicates one of the codes contained in Table 13.1 or 13.2, the Be242 is damaged and should be returned to Bernini Design.
To exit the Troubleshooting, remove the Vdc supply at anytime
13.1 Testing the Push buttons
- A) - Push the push buttons on the front panel one by one. The display will show a message according to Table 13.1. As soon as you release all buttons, the message [- - - -] will be display
Table 13.1: Push buttons true table
| Push button | Display Code | Push button | Display
Code |
| [START-F1] | [ F1 ] | [OFF-F7 ] | [ F7 ] |
| [STOP-F2] | [ F2 ] | [AUTO↓] | [auto] |
| [ I-F3 ] | [ F3 ] | [TEST↑] | [tESt] |
| [ O-F4 ] | [ F4 ] | [←F8] | [ F8 ] |
| [ I-F5 ] | [ F5 ] | [F9→] | [ F9 ] |
| [ MAN-F6 ] | [ F6 ] | [ACK-F10] | [ F10] |
13.2 Testing the Inputs
Push and hold the [ACK-F10] button until the message [-in-] appears. Connect, one by one, inputs #9 to #14 to the battery minus. For each input, a code will be displayed according to Table 13.2. If more than one input is connected together (or some of them are in a short circuit), the display indicates the messages in sequence.
Table 13.2
| Terminal number (function) | Display Code | Terminal number (function) | Display
Code |
||
| #14 (Input 4) | [ inP 4] | #9 (Low fuel) | [ FUEL] | ||
| #10 (Input 3) | [ inP 3] | #12 (Temperature) | [ tEMP] | ||
| #13 (Input 2) | [ inP 2] | #11 (Oil pressure) | [ oiL] | ||
| [ | #JH1-JH4 (Emergency) | [ EMEr] | |||
13.3Testing the Output
- A) - Push the [ACK-F10] push button, for about 10 seconds, until the message [-out] appears.
- B) - Connect a lamp (1..2W) to the output terminals (#2 - #6), as indicated in the wiring diagram. At this stage, if a lamp turns on, the Be242(RB) is damaged and should be returned for service.
- C) - Push a button on the front panel. According to Table 13.3, the display should indicate the proper message and the lamp must turn on. If a lamp fails to turn on, the Be242(RB) is damaged and should be returned for service.
Table 13.3: Outputs true table
| Push button | Display Code | Terminal
Output |
Push button | Display
Code |
Terminal
Output |
|
| [START-F1] | [KG] | L3-KG | [OFF-F7] |
USE OHM-METER to check the contact resistance L3-KG and T-KM |
||
| [STOP-F2] | [KM] | T-KM | [DISPLAY-F8] | |||
| [I-F5] | [out 2] | # 5 | [OFF-F7] | [FUEL] | # 2 | |
| [MAN-F6] | [out 1] | # 6 | [DISPLAY-F8] | [StoP] | # 4 | |
To exit the Troubleshooting, remove the Vdc supply at anytime
Section 14.0 General Specifications
Supply Voltage : 7.5 Vdc to 33 Vdc. Protection: internal 300 mA thermal fuse. Supply Current: 50 mA up to 150 mA
Vbatt. Measurement Precision Vdc: 1%
Dimensions: 224X105 X 68 mm, Cut-out: round 56mm min. Be242RB Dim.: 195X126 X 70 mm /Rail mount.
Operating Temperature range: -30 deg C up to +70 deg C. Humidity Range: 5% up to 95% non-condensing.
Be242 Weight: 230 gr Be242RB Weight: 500 gr Interconnection Cable: 1 meter
General Design: 89/336 EEC, 89/392 EEC, 73/23 EEC, 93/68 EEC, IEC 68-2-6 Certification: CE
Be242RB Relay Output Characteristics:
Output Current Rating: 8A . Recommended DC LOAD 1A Max @ 24VDC..
Mains and Generator Voltage Inputs: Nominal Voltage: 80 Vac up to 600 Vac (permanent & continuously Ph-Ph)
Over voltage: 4 KVac for one second. Measurement precision: +/- 1% . Input impedance: 2 Mega Ohm
Mains and Generator Frequency Measurements: 30-99Hz, Resolution 0,1Hz, Precision/Accuracy 0,2% /0.2%.
Current Transformer Inputs (3-Phases): 10 / 5 Aac up to 1000 / 5 Aac. Maximum Over Current: 8 Aac for 30 seconds.
Measurement precision: +/- 2% . Internal resistance: 0.05 Ohm
Digital Inputs: Open circuit voltage: 10 /22 Vdc (12 V /24V supply). - Closed circuit current: 15 mA dc max.
Charger Alternator Monitoring: Operating 3-36 Vdc. Vdc reading accuracy +/- 2%. Excitation Power: max 3 W
Hour Run Counter & Timers: internal Quartz Crystal oscillator 4.91Mhz. Resolution 1 second; precision 0,25%
Section 15.0 Software Upgrades & Revisions
| Firmware
Versions |
Date | Description |
| 1.0.01 | December 2020 | First release |
| 4.0.26 | March 2021 | Udate Defaults Output 1 & 2 |
Section 16.0 Application Notes
16.10 - Programming of the Automatic Periodic Test (example: 20 minutes every 7 days)
- A) - Enter the 'Program Mode' and set [P.41] to [168] hours (168 hours=7days).
- B) - Set [P.42] to [ 20'] and save the programming
- C) - Select the AUTO mode
- D) - Disconnect the battery and wait for the desired start time (using an external clock reference).
- E) - Connect the battery and select the 'AUTO' mode.
The Be242 will start the engine after the programmed hours. The engine will run OFF-LOAD for 20 minutes. If the Mains fails during the automatic periodic test, the Be242 will transfer the load to the generator.
The Be242 does not use an internal real time clock for the programmed hours ([P.41] setting, table 7.05). The user could experiment with shifting the periodic tests (about some minutes a month). To avoid error accumulation, we recommend the following procedures (D) and (E) as indicated in section 16.10.
IMPORTANT NOTICE If the Vdc voltage supply is removed, the Be242 loses count of the days. When the supply restores, the Be242 starts to count the A.P.T. from zero. To synchronize the periodic start follow the above instructions (D) & (E).
16.20 - Interfacing an Auto start with Be242 A.T.S Controller
To use the Be242 as an A.T.S. controller you may connect the FUEL output to the AUTOSTART remote start input via a suitable relay. Program the [P.26] to [oFF]. We recommend that you program the [P.31] to [15] (number of attempts) in order to provide proper time for AUTOSTART to start the engine.
16.30 - Single Phase operation
Program the parameter [P.8] with the option ‘3’ as indicated in section 7.01B. Connect the Mains LIVE (phase) to terminals ‘S’ and ‘T’. Connect the NEUTRAL to terminal ‘R’. Connect the Generator LIVE (phase) to terminals ‘L2’ and ‘L3’. Connect the Neutral to ‘L1’. In this way, the outputs KM and KG will output a ‘phase’. This will allow energizing the coils of the contactors (supposed to connect the other side of the coils as indicated in section 18). Connect the current transformer to terminals ‘COM’ and ‘CT1’. Finally, adjust the parameters P4, P5, P9 and P10 (Over/Under Voltage settings) according to your needs.
16.40 - Maintenance & Rental Timers
Once a timer expires, the Be242 indicates the [Er.10] on display. To clear the alarm(s), enter the manual mode, push and hold the [ACK-F10] button for at least 20 seconds. You are allowed to modify the programmed Maintenance timer at anytime. Programmable timers are described in section 7, table 7.05A-B (P44, P45 and P46). To restart the Rental Timer, you are required to enter the programming and exit the programming (we recommend that you limit the access to the programming by using a password).
16.50 - Panel & Gen-set Builders Notes:
-----------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------
17.00 - Interfacing Auto Start Module
You may use the FUEL SOLENOID output relay JA2. You may use RUN PLUS input as feedback. You are in some cases required to increase the attempt numbers to let a reasonable time to the AUTO START module to start the engine, When FUEL SOLENOID shuts down, the AUTO START module will stop the engine.
18.0 Typical Application Wiring Diagram
The following drawing illustrates the recommended wiring diagram of the BE242 kit controller. In making the panel please consider the following information.
- Always consult the international standard IEC 61439-1-2-34-5-6-7 IEC 60529
- Keep a reasonable distance between cables that carry 400V utility power and low-voltage cables committed to controlling the engine. This will avoid problems in case of severe lightning.
- Do not under-estimate the maximum operating temperature of the panel. Consider a proper de-rating of the electrical parameters. A wrong calculation of the size of the cables, size of terminal blocks or nominal current of the contactors can produce a dangerous over-heat.
- Always limit the current into the panel, from utility power and generator, according to the AC1 rating of the contactors and according to the size of cables and terminal blocks. In case of short circuit, when the automatic protections fail, you can trust to an additional external overcurrent protection (e.g. circuit breaker). Doing so, you will preserve the integrity of the panel even in case of direct short circuit.
- Always protect with appropriate fuse the cables connected to battery plus. A short circuit on the battery cable can reach several hundreds amps.
- Always use pilot relays connected as close as Possibile to the engine. This is really important if the panel is far away from the generator.
- We recommend that you use a mechanical interlock and auxiliary electrical interlock on the contactors.
- Before commencing the connection of utility power and generator we recommend that you test 100% the automation of the engine and generator.
- Before connecting the final LOAD (e.g. the building) always make a test using some lamps. In this way, you are sure that all connections are very well done,
