WHERE CAN YOU FIND THE CONTROL PANEL OF THE GENERATOR?

Navigating through the internet you will find some 'FAQs' about Generator Control Panels. The basic keywords are something like these: What is an ATS panel or what size generator to power a house Other questions are about how much power does a house use or how to connect a portable generator to a house. Bernini's design has answers for how to use the generator to power a house and what is an AMF panel as well. We clarify, on this web page, some of the common questions about generators.  Bernini Design generator control panel manufacturers have professional solutions when you have to connect a generator to your electrical system.

WHICH TYPE OF PANEL CAN I USE FOR GENERATOR CONTROL?

IF YOU WANT TO MAKE A STANDBY GENERATOR, WE RECOMMEND THAT YOU USE AN AMF OR ATS PANEL



AMF ATS PANELS


ATS PANEL PRICE LIST

 AUTOMATIC TRANSFER SWITCH TECHNOLOGY BASED ON BE242 ATS CONTROLLER WITH CONTACTORS CHANGEOVER



OPEN HIGH RESOLUTION WIRING DIAGRAM



ODER NOW CALL +39 335 7077148 OR MAIL TO [email protected]



KVA/A

PRICE

CM

KG

15/30A

792€

50x40x21

14

25/45A

877€

50x40x25

16

40/63A

1086€

70x50x25

22

60/100A

1403€

70x50x25

28

80/125

1891€

80x60x30

34

100/150A

2098€

80x60x30

38

130/200A

2672€

80x60x30

44

160/259A

3160€

80x60x30

48

ATS STANDARD CONFIGURATION

3-PHASE+N / Nr.12 TERMINAL BLOCKS / Nr. 3 CURRENT TRANSFORMERS / 12V1A BATTERY CHARGER / Nr.5 DC-OUTPUT RELAYS / Nr. 5 DIGITAL INPUTS / STEEL METAL CABINET IP62 / EMERGENCY SWITCH / BE242 ATS CONTROLLER / START-STOP REMOTE CONTROL INPUT / UNIVERSAL ENGINE INTERFACE /

AMF PANEL PRICELIST

CONTACTOR-CHANGEOVER TECHNOLOGY WITH REMOTE MONITORING MODBUS RS485 BASED ON BEK3 AMF CONTROLLER

OPEN HIGH RESOLUTION WIRING DIAGRAM

ODER NOW +39 335 7077148

MAIL [email protected]

KVA/A

PRICE

CM

KG

15/30A

892€

50x40x21

14

25/45A

977€

50x40x25

16

40/63A

1186€

70x50x25

22

60/100A

1503€

70x50x25

28

80/125

1991€

80x60x30

34

100/150A

2198€

80x60x30

38

130/200A

2772€

80x60x30

44

160/259A

3260€

80x60x30

48

AMF STANDARD CONFIGURATION

3-PHASE+N / Nr.12 TERMINAL BLOCKS / Nr. 3 CURRENT TRANSFORMERS / 12V1A BATTERY CHARGER / Nr.5 DC-OUTPUT RELAYS / Nr. 5 DIGITAL INPUTS / STEEL METAL CABINET IP62 / EMERGENCY SWITCH / BE242 AMF CONTROLLER / START-STOP REMOTE CONTROL INPUT / UNIVERSAL ENGINE INTERFACE




HOW TO CONNECT A GENERATOR TO YOUR HOUSE BY USING A GENERATOR PANEL?

How to connect a generator to your house

WATCH THE VIDEO TO SEE HOW SIMPLE IS THE CONNECTION OF A POWER GENERATOR TO YOUR HOUSE.

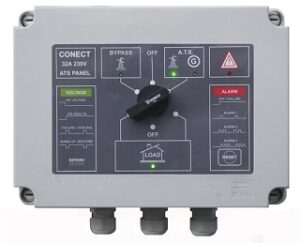

By using the ATS CONECT panel you have the option to power your house using a simple portable generator. When the utility power fails, you will power your house in a few minutes. We provide a STEP-BY-STEP online tutorial that will guide you. But if you want more performances and you budget allows to purchase a stationary generator you can use the embedded relays. You will obtain a professional automatic start generator. You may use any style of engine gas, gasoline or diesel


>>PURCHASE ONLINE THE ATS CONECT PANEL


HOW TO MONITOR YOUR POWER GENERATOR USING THE MOBILE PHONE?

GSM MONITORING

Use the EVOLVE ATS PANEL to make an high tech standby generator. Protect your business by using a state-of-art solution. The EVOLVE ATS PANEL features a GSM system taht allows you real time control of your electrical systems. You will gent notificationss about utility power failures and alarms. You can remotely restart your system by clearing alarms and failures.

>>SEE THE EVOLVE ATS PANEL PAGE PURCHASE ONLINE


WHAT IS A GENERATOR CONTROL PANEL?

 A generator control panel is used when you have to control a standby diesel generator. The controller embedded inside the generator control panel continuously monitors the utility power. The generator control panel manages, in a fully automatic way, the connection assignment of your load to utility power or generator.

The cabinet that hosts the generator control panel includes an automatic battery charger and a set of electronic boards. The logic that governs the generator control panel is conveniently tasked with driving the transfer switch. Depending on the complexity of the main controller we manufacture generator control panels for industrial use, commercial use, or special applications. As an option the generator control panel may include RS485 serial interface, remote control, monitoring systems, Modems, Internet connection, and so on. Available sizes on the market are normally in the range of 10-1000kVA. For small generators, ideal for home applications, Bernini Design manufactures cost-effective & user-friendly generator control panels. A generator control panel made by Bernini Design complies with NFPA110 and CAN/CSA-C282-M89 specifications.


WHAT IS THE DIFFERENCE BETWEEN AMF AND ATS PANELS?

 The AMF panel is a turnkey complete solution for a standby generator. The ATS panel requires additional equipment to accomplish a standby solution in case of a power outage. The AMF panel allows more granularity of applications. The use of contactors allows the highly sophisticated function of protection up to 200kVA. On the other hand, the ATS panel can serve high power systems over 1000kVA.

To be precise, the AMF panel does include an AMF controller that monitors the status of the mains or utility power if you will. It is fitted with all relays needed to interface with the engine and generator. It includes all power components including the changeover. The changeover can be made with contactors or a motorized transfer switch. The ATS panel does include only the transfer switch. This is usually made by using a motorized transfer switch. The ATS panel is far more simple than AMF panel but capable of switching extremely high levels of power. The typical configuration of a big power distribution system includes one main ATS panel (e.g. 2000kVA) and some AMF panels of lower power rating.


OUR HISTORY

Our group of companies is European generator control panel manufacturers of AMF /ATS / AGS generator control panels. On this page is an overview of our products together with all the necessary information.  Bernini Design started designing generator control panels in 1986. With over 30 years of experience, we manufactured over 100,000 automatic mains failure and automatic transfer switch units.  You can distinguish a Bernini Design panel by the following characteristics:



THE BEK3 UNIVERSAL AMF ATS CONTROLLER

BEK3 GENERATOR CONTROLLER

- INDUSTRIAL & COMPACT DESIGN   -  STATE OF ART ELECTRONIC CONTROLLER

- UNCOMPARABLE RELIABILITY   -  STABLE SOFTWARE   -  USER FRIENDLY





PANELS TYPOLOGY

If it is about industrial, commercial, telecom, or airport application, Bernini Design generator control panel manufacturers provide custom-made state-of-art solutions and up-to-code installations. Bernini Design manufactures all kinds of generator control panels: standard or custom made. Standard generator control panels are categorized according to final applications. For general purposes, generator control panels are generally directly fitted to the generator in order to provide basic functionality. These panels are normally fitted with a general-purpose generator controller able to provide a start, stop, and protection for the engine and generator.

INDUSTRIAL AMF PANELS

Here is an example of a generator control panel fitted with a BEK3 controller [1]. The panel controls the engine via the programmable input-output lines [4]. The BEK3 interfaces with switches fitted to the frame of the generator [3]. The generator control panel is connected to the alternator via a power cable of a suitable size. According to the mode of operation, the BEK3 controller drives the status of the internal power circuit breakers. The controller features MODBUS and CANBUS (SAEJ1939 compatible). You can use traditional standard engines by using the programmable input/output lines if CANBUS is not available. The panel includes miscellaneous equipment: a battery charger, electronic circuit boards,  power relays, and terminal blocks. The BeK3 controller is conveniently tasked with driving the contactors. These BEK3-based panels feature IP62 ingress protection.

THE PROPER AMF & ATS CONTROLLER

AMF generator control panels include a special controller committed to closer control of the utility power when the generator is connected in a standby configuration.  An ATS generator control panel is a stand-alone generator control panel that includes transfer switches to transfer the load to the generator and utility power.  This kind of generator control panel is a cost-effective solution in the case is connected to a generator with an embedded generator auto start module. The ATS generator control panel features only the power components committed to loading transfer. It includes simple electronic boards. A more complex generator control panel is required for parallel application for two or more generators. The generator control panels are made according to standard international specifications. Additional differences are noticeable when it is to industrial, commercial, or military applications for example.

GENERATOR PANEL SUITABLE FOR GENERAL

PURPOSE APPLICATIONS

For general purpose applications, we recommend that you use the cost-effective series of generator control panels based on the BE242 controller. The generator control panels equipped with a BE242 controller are available in the range of 10 up to 200kVA.  This line of the generator control panel is the best product for commercial buildings, small factories, and the light industry. The controller is user-friendly and features the basic functions required from non-critical applications.

GENERATOR CONTROL PANEL GSM MONITORING OPTIONS



ADD MORE VALUE TO YOUR PANEL BY PURCHASING THE GSM OPTION. ALL FUNCTIONS WILL BE REMOTELY TRANSFERRED TO YOUR MOBILE PHONE BY USING SIMPLE SYNTAX SMS



AMF ATS COMMON SPECIFICATIONS

DC Supply: 5.5- 33Vdc, 50-150mA

Protection: internal 300mA thermal fuse

Ingress Protection: IP62

Anti-corrosion resin-coated steel

Operating temperature range: -30 deg C up to +70 deg C

Humidity range: 5% up to 95%

Static outputs ratings:  300mA/100Vdc short circuit proof. Logic: negative

Short-circuit proof static outputs

Mains and Generator voltage range: 70 Vac up to 600Vac

Nominal Frequency: 50Hz, 60Hz & 400Hz

Measurements & Instruments

 V - A -Hz - kVA - kVA - kVAr-  kW - PF- kWh - CCW/CW - Reverse Power

Instruments:  RPM - BAR - Vdc - Adc - °C - h  - Fuel %

Instruments: CANbus: according to SAEJ1939

Overvoltage: 4KVac phase-neutral

Measurement precision: +/- 1%.

Input impedance: 2 Mega Ohm

Measurement method: True-RMS

Current transformer size: 10-9900/5Aac

Permanent CTs current: 7Aac

On-site calibration down to 0%

Nominal Voltage: up to 600Vac


 The Bernini Design Control Panels are suitable for operation in ambient temperatures from -25 °C to +50 °C and altitudes t0 5000 meters.


 The Bernini Design Control Panels are designed for supplying power continuously to a constant electrical load for unlimited hours. Continuous Power (COP) in accordance with ISO 8528, ISO 3046, DIN 6271, NFPA100, NFPA70 & BS 5514.


ENGINE PROTECTION FUNCTIONS

- Overspeed /Underspeed shut down

- Low oil pressure warning and shut down

- High coolant temperature warning /shut down

- High oil temperature warning / shut down

- Low coolant level warning and shut down

- Low coolant temperature warning

- High and low battery voltage warning

- Fail to start shut down

- Fail to stop shut down

- Engine Sensor failure indications

ALTERNATOR PROTECTION

 - Over current and short circuit shut down

- Overcurrent warning and shut down

- Earth Fault shut down

- Generator Circuit Breaker Failure

- Over/under voltage shut down

- Over/under frequency shut down

- Overload  (KVA) warning

- Reverse power shut down

- Minimum kW limit warning

- Phase sequence error

- Phase unbalance error

- Mains Circuit Breaker Failure

MISCELLANEOUS FEATURES

- Off/Manual/Auto / Test Mode
- Manual run/stop switch
- Panel lamp test switch
- Emergency stop switch
- Exercise switch
- Alpha-numeric display
- Navigation push buttons
- Solid-state LED indicators for alarms
- Remote control via MODBUS & GSM
- Data logging on faults
- 12 Adjustable timers
- Configurable  inputs / outputs
- Configurable  Fuel Alarms
- Real-Time Clock
- TCP-IP remote monitoring
- GSM MODBUS remote monitoring
