Generator Controller  Be124 Centurion

The Be124 is the most powerful generator controller on the market. It features extremely high accurate measurements for Vac - Aac - Hz - PF - Vac - Vdc - RPM - kW - kVA - kVAr - kWh - PF- BAR - PSI - °C - °F.

Despite its basic accuracy is 1,5%, you can get higher precision by using the embedded autocalibration software. You can use the Be124 for industrial diesel-driven heavy machinery.



  This generator controller works up to 600Hz. In other wods, it is a suitable choice for aircraft ground support equipment generators. You can connect the Be124 to TCP-IP or GSM systems.



 The Be124 generator controller is the appropriate solution when you have to refurbish GAS-GASOLINE-DIESEL generator. In effect it can monitor generators up to 1000kVA. In addition to standard configurable input & output, the Be124 complies with SAEJ1939 via a fully isolated CANbus interface.

 In conclusion, the BE124 is the best option as long as you have to control an high valuable generator. For standard applications we recommend that you use the BE24 Auto Start Module or Be172 Key Start module.



BE124 GENERATOR CONTROLLER INSTALLATION MANUAL

BE124

ON-LINE PURCHASE

RS485 MODBUS + SAE J1939  CANBUS

BERNINI@BERNINI-DESIGN.COM

299€ FREE SHIPPING WORLD WIDE

GENERATOR CONTROLLER WORL CLASS PERFORMANCES

TCP-IP / GSM / GPS / MODBUS-RTU MONITORING

DATA TRANSIENT RECORDER

3-PHASE GENERATOR RELAY

KEY START + AUTO START

RS485+MODBUS PROTOCOL

CANBUS SAE J1939

REAL TIME CLOCK

BUILT-IN TROUBLESHOOTING

150 ADJUSTABLE SETTINGS

KW-KVA-KVAr-PF KWh LOGGER

ENGINE /GEN INSTRUMETS

REMOTE CONTROL TCP-IP

GSM + SMS MONITORING

SUPPORTS ANALOG SENSORS

SUPPORTS MAGNETIC PICKUP

PROGRAMMABLE IN/OUT

WEEKLY/DAILY SCHEDULER

200 LOG EVENTS RECORDER

16 CHANNEL DATA LOGGER

MULTILEVEL AUTO-START

REMOTE MONITORING SOFTWARE

BE124 GENERATOR CONTROLLER

REAR VIEW



Rear View Generator Controller Connections

[1] CONNECTIONS FOR THE GENERATOR VOLTAGE; THE TYPICAL CONFIGURATION IS 3-PHASE+N. SINGLE PHASE OPERATION IS ALLOWED.

  [2] ANALOG & DIGITAL INPUTS. IT WILL ALLOW YOU TO INTERFACE WITH ANY KIND OF ENGINE.

  [3] THE RS485 SERIAL INTERFACE SUPPORTS THE MODBUS PROTOCOL.

  [4] THE CANBUS SERIAL INTERFACES WITH SAEJ1939 COMPATIBLE ENGINE.

  [5] THE MINUS BATTERY SUPPLY  [6] THE BATTERY PLUS SUPPLY .

[7] THE '50' BLADE TERMINAL STARTER PILOT  [8] THE '15/54' BLADE TERMINAL FOR THE DASHBOARD SUPPLY.

[9] THE DIGITAL OUTPUTS PORT.

GENERATOR CONTROLLER

CONNECTIONS  TUTORIAL



Generator Controller Connections
The generator is connected to the input voltage sensing circuit via fuses (5). The Current transformers (2) must be provided to protect the generator from overload  problems.



  We recommend that you connect also a current transformer able to measure a current fault (4). The circuit breaker should be operated via ON/OFF coil [6].



  In case of troubles the Be124 protection relay will disable the circuit breaker protecting LOAD and Generator. Removable connector JF allows you to connect all output relays with pre-configured or user programmable options.



The front panel features a Key switch (10). It can be mainly used to start the engine with a manual operated generator. The best recommended option is to use the JF-7 (start-output) that will allow you a safe MANUAL and AUTOMATIC operation.



  As long as you need a remote monitoring using a computer, the Be124 coupled with its RS485 port supports the MODBUS-RTU protocol. In case your engine is controlled by an ECU (SAE J1939), the Be124 provides the CANbus isolated port. You can connect any SAE-J1939 compatible engine.



To summarize, the Be124 Centurion features a full configurable PICKUP input. It will be able to provide rotational speed information and a proper crank setting. As a result, you will have at your disposal a powerful monitoring tool.
GENERATOR  CONTROLLER TERMINOLOGY
Finally, just for your knowledge, a brief explanation of the terms commonly used in a typical Generator Controller application.



A generator controller integrates, in one electronic module, an Engine Control & Protection unit, a Charging Alternator Monitoring Module and a special programmable relay for the protection & monitoring of the Alternator.
As a result, we can say that a generator controller monitors the parameters of the Engine (Oil pressure, Temperature, Fuel, Speed and others), Charger Alternator and the main Alternator.
First of all, it compares the settings of the alarms stored in the memory with the measurements made on the input  circuits. The second important task is using the result of these comparisons to generate alarms, protecting actions, warnings or logic functions (it activates a particular output for example).
An high-tech generator controller must feature a range of programmable settings and is engineered to comply with international standards like NFPA110 CSA.



If the CANBUS is not available a good Generator controller should be capable of interfacing with analogue sensors or switches for the OIL/°C/FUEL/Auxiliary Temperauture monitoring .
Equally important, for a generator controller, is the ability to operate reliably in a range of environments, from minus 25 up to 70 degrees Celsius.



YOU MAY BE INTERESTED IN KNOWING WHAT AN ATS CONTROLLER IS
YOU MAY BE INTERESTED IN KNOWING WHAT AN AMF CONTROLLER IS



GENERATOR  CONTROLLER GENERAL SPECIFICATIONS

Generator Controller Cranking Dropout:  0V for a half-second (initial voltage: 12Vdc).

Weight: 550 grams. General design: ECC 89/336, 89/392, 73/23, 93/68, IEC 68-2-6.  Certification: CE

Generator Voltage: nominal voltage 70 Vac up to 600Vac (Ph-Ph) 347Vac (Ph-N). Over voltage: 4KVac Ph-Ph.

Voltage Measurement precision (V/Hz): +/- 1% F.S.. Impedance: 2 M Ohm. Resolution: 1Vac .

Generator Controller Frequency: nominal frequency 20.0 Hz up to 600.0 Hz.  Measurement precision: +/- 1% F.S..

Measurement Circuit Impedance: 2 M Ohm. Resolution / Accuracy: 0,1Hz (20.0-600.0Hz).

Current Sensing: 5/5Aac up to 2000/5Aac. Maximum permanent current on the sensing inputs: 7Aac.

Current Measurement precision: +/- 2%. Internal resistance: 0.05 Ohm. Resolution 0,1Aac (<500/5), 1Aac (>500/5).

Digital Inputs: open circuit voltage of approximately 4,5V - Trigger level: < 2Vdc (max 5mA).

Maximum Overvoltage: +/-100V 1 s. Permanent short circuit to Bt+ and Bt- allowed for unlimited time.

Analogue Inputs: resistance range 0 up to 1000Ohm. Current at zero Ohm: 5mA. Overvoltage +/-100V. Accuracy: 2%.



Supply Surge: 100Vdc /500 Amps (8/20 microseconds). Absorption capacity: 8 Joule max

Dimensions: 96mm X 96mm X 87,5mm. Panel Cut-out: 91mm X 91mm, outdoor operation

Operating Temperature Range: -25 deg. C up to +70 deg. C. Humidity Range: 5% up to 95% non-condensing.

Generator Controller Static Outputs: positive logic / 150mA output current / short circuit proof.

Charger Alternator Monitoring: operating voltage up to 36Vdc/3W. Vdc reading accuracy +/- 2%.

Magnetic Pickup Input: 0,5V-50VRMS, 10-25KHz. RPM reading accuracy +/- 1%. Teeth Count: 10.0/500.0

CAN Port: fully isolated. 250Kb/second. Internal 120 Ohm impedance available for connection. Supports SAE1939 protocol.

RS485 Port: support Modbus Protocol and drives 1000 Metres twisted cable, ESD 2KV & drives up to 127 nodes.

CAN Port: fully isolated. 250Kb/second. Internal 120 Ohm impedance available for connection. Supports SAE1939 protocol.

HOW TO USE THE BE124

 The mode of operation of Be124 is selected via a key switch and a [AUTO] push button.
If the Be124 generator controller was in TEST or AUTO mode prior to power down, when you switch on the battery supply, the Be124 generator controller automatically enters the AUTO mode of operation.
In the other cases, you have to manually start the engine.

OFF MODE



Turn the key to ‘OFF’: you switch OFF the Be124 and clear the fault alarms.
You are allowed to program the parameters or modify the settings. The backlight of the display will shutdown automatically after a 30 minutes timeout.
To exit the OFF mode turn the key to ‘ON’.



MANUAL MODE



Turn the key to ‘ON’ position. After the automatic 5 second self-check turn the key to ‘START’ position until engine starts. The display will automatically show the ‘Be124 Status’ page.
During cranking, depending on the efficiency of the battery, the generator controller may turn off the backlight of the display. Wait until the green LED GCB-ON starts blinking: it means that the generator is working within the settings.
Push the [GCB] push button to close the generator circuit breaker: the green LED [GCB] will light and remain lit. Use the arrow buttons to browse the instrumentation.
Push [ACK] at anytime to open the ‘Be124 Status’ page. Push the [GCB] pushbutton to open the generator circuit breaker. To stop the engine, turn the key to ‘OFF’ position; the messages [MODE OFF] & [STOPPING] will appear on the display for the programmed 'Stop Solenoid' time.
After a complete stop, you can restart the engine.



AUTO MODE

­­­­­­­­­­­­­­­­­­
Turn the key to ‘ON’ position. Push the [AUTO] push button until the yellow LED [AUTO] illuminates. The engine starts when the generator controller detects a request to start from a configurable input.
The green LED GCB blinks when the generator is working within the programmed limits. After the [WARM UP] time, the generator circuit breaker (GCB) will close automatically.
Use the arrows to browse the instrumentation. Push [ACK] at any time to display the ‘Be124 Status’ page. When there is a request to stop the engine, the generator controller opens the GCB and triggers the [COOL DOWN] time. After that, the Be124 will stop the engine.
In auto mode of operation, the generator controller will periodically test the engine if the scheduler is correctly programmed . During the test, the yellow LED [AUTO] will continue to blink; the display indicates the message  [TEST]. To stop the engine, turn the key to ‘OFF’ position at any time.
The display continuously informs you about what Be124 is doing. The engine will start when you program the AUTO START function as well.



TEST MODE



Turn the key to ‘ON’ position. Push and hold the [AUTO] push button for at least 10 seconds until the display indicates the message [TEST MODE] and the yellow LED AUTO starts blinking.
The generator controller will start the engine immediately. The generator controller will enable the generator circuit breaker (GCB) only if not otherwise programmed by the parameter [GCB TEST CONTROL].
To exit the ‘TEST’ mode, push the [AUTO] push button: the generator controller will enter the ‘MAN’ mode of operation.

USING THE GENERATOR CONTROLLER

EMBEDDED OSCILLOSCOPE

Push [ACK]; the Be124 generator controller displays  the ‘Controller Status’ page. Push [←] to open the Main Menu. The [ENGINE METERING] menu will appear on the top of the display. Repeatedly push [ ↓ ] to select [oscilloscope]. Push [→] to activate the oscilloscope.
The oscilloscope embedded into Be124 generator controller is able to analyze the waveform of the voltages and currents. True RMS voltages, currents and frequency measurements are  indicated on the top of the display also.
The BE124 generator controller, by means of software, provides automatic setup in a way to optimize the display of the waveform (auto trigger, auto range etc.).
In case you want to see details about the peaks of the waveforms, you can use the buttons [ ↓ ][ ↑ ] to display the positive peaks or negative peaks (POS= positive and NEG=negative). The Be124 will optimize the resolution automatically.
When you start the oscilloscope, internal setting is 'AUTO' (both positive and negative on the same screen). But you can change the display mode at anytime. On the left side you see examples of display for voltage VL1 to Neutral.
Note: over a frequency of about 150 Hz the LCD changes the presentation of the waveform. In this way, the measurements  displayed will allow you to better analyze the stability of the parameters.

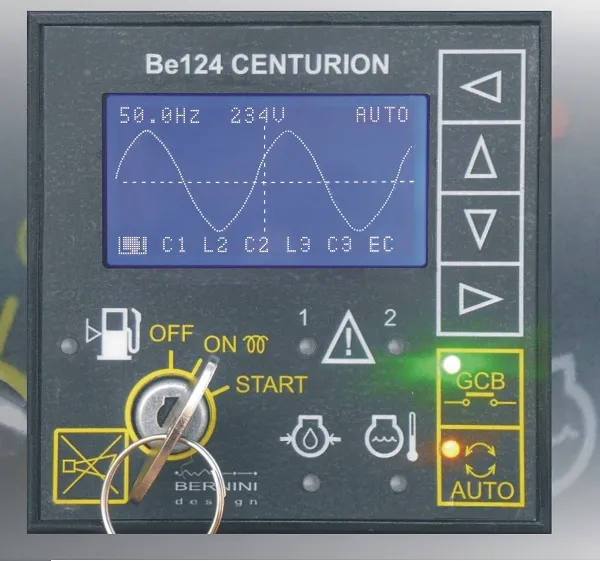

generator controller oscilloscope

BERNINI DESIGN SRL

Zona Industriale 46035 Ostiglia Italy

email support@bernini-design.com

24/7/365 support 0040 721241361
