GENERATOR CONTROLLERS

 AMONG THE GENERATOR CONTROLLER MANUFACTURERS WE GO DEEP IN THE RIGOUR OF OUR CRAFT PROVIDING EXCELLENT SUPPORT

GENERATOR CONTROLLERS & PRODUCTS SELECTION TOOL

Choose here the generator controller suitable for your application. A brief presentation is provided for each item. Each generator controller is very well presented in its own page. On-line purchase together with downloadable documentation is available as well.

AMT910        BE11        BE1

 BE21        BE22        BE23

 BE24          BE32         BEK3

 BE42        BE46      BE48

 BE72         BE172         BE124

 BE142         BE242         BE2K

BE2000       BM80        BE2KP       BE126

AMF CONTROLLERS SELECTION

AMT910        BE11

 BE21        BE22

 BE32         BEK3

 BE42

 BE142         BE242         BE2K

BE2000       BM80        BE2KP



ATS CONTROLLERS SELECTION

 BE142              BE42               BE242



OPEN THE GENERATOR PANELS 15-200KVA PAGE



HOUSE BACKUP ATS PANELS



GENERATOR CONTROLLERS

   BE1

  BE23

 BE24

 BE46

  BE124



BE126 FIRE FIGHTING NFPA-20 COMPLIANT



DIESEL ENGINE PROTECTION MODULES

 BE72         BE172

GENERATOR MONITORING



BATTERY MONITORING



BY COUNTRY

GERMANY    FRANCE   ROMANIA   ITALY  SPAIN   INTERNATIONAL



BERNINI DESIGN SALE TERMS

ALL ABOUT GENERATOR CONTROLLERS

The generator controllers integrate, in theirs modules, engine control & protection units, a charging alternator monitoring module and programmable protective relay for the protection & monitoring of the alternator.

  The generator controllers monitor the main parameters of the engine  and the main parameters of the  alternator. They compare the settings in the memory with the measurements made by the electronic circuits.

  The result of the comparisons will then generate alarms, warnings or why not, logic actions. The Bernini Design generator controllers feature a range of programmable settings and are engineered to comply with international standards like NFPA110 or  CSA99 .

  The Bernini Design generator controllers are capable of interfacing with analogue sensors or switches for the OIL/°C/FUEL/Auxiliary Temperature monitoring.

  These generator controllers operate reliably in a range of environments, from minus 30 up to 70 degree Celsius and, in some cases from minus 40°C up to + 85°C.

LEADERSHIP

 There are leaders, and then there's everyone else. At Bernini Design generator controller manufacturers, we take immense pride in driving the genset controller standards forward, focusing on efficiency, quality, and safety.

No one ever complained about our generator controllers


TOP QUALITY

 Our standards are high. So high in fact, we're in a league of our own, moving our entire industry forward. Bernini Design generator controller manufacturers has become synonymous with the highest quality genset controller.

No one ever complained about having their work executed perfectly.


TECHNOLOGY

 When you deal with generators, your generator controller can be the difference between moving forward and spinning your wheels. At Bernini Design we're continually finding the best new technology.

No one ever complained it was too easy. No one ever complained about our technology.

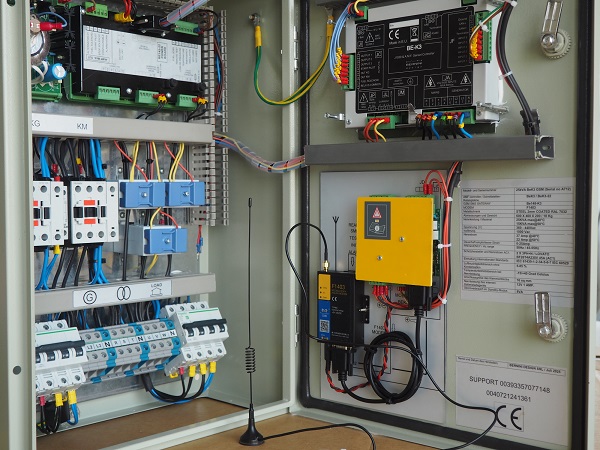

Using the Bernini Design generator controllers you can expand the visibility of you power system performance to your customers – whether in the facility or off-site – through a on-site server (via the intranet or Internet), via GSM or via RS485 cable. Bernini Design remote monitoring equipment provides a cost effective and efficient means of remotely monitoring and controlling generator sets, automatic transfer panels and miscellaneous devices. You can access the remote monitoring equipment from any computer or mobile phone.

About Bernini Design Generator Controllers



You may wish to know, - what are generator controllers and what do they do? Taken as a units, they encompasses intelligent electronic controllers, of any form, that integrate 3-Phase Generator Control Modules,  Circuit Breaker drivers, Alternator Monitoring  & Engine Control Modules.
  The Bernini Design generator controllers provide clear visual indication by means of LEDs and Displays for all supervised parameters and alarms. The Bernini Design generator controllers feature programmable settings and are engineered to comply with international standards recommendations.
  Some of our generator controllers feature RS485 and CANBUS in order to communicate with engines equipped with ECUs (Electronic Control Unit according to the SAE-1939 standard).
  Complex generator controllers like BeK3, Be2K-Plus may include all modules indicated above . Simple generator controllers like Be142, Be1,Be24 may include some of them or simply only one of them (Be72). This affects the total size and weight of the generator controllers.
  In some situations LCD displays (Liquid Crystal Display) are not recommended at the extremes of -30/+70 deg. C, for this reason BERNINI DESIGN manufactures generator controllers with solid-state 7-segments LED displays. As a matter of fact it is quite difficult to obtain good readings below 15 degrees Celsius on an LCD Display. The majority of the applications for generator controllers find a convenient mounting place directly on the frame of a Diesel generator.
  In this case the generator controllers must be both rugged and vibration proof. In some case the generator controllers are connected with a separation as much as several hundreds meters from the generator itself.
  This is not an issue of concern since that all Bernini Design generator controllers feature a rugged RS485 serial interface, allowing you to drive a twisted cable length as distant as 1000 metres.
