CENTRALINA GRUPPO ELETTROGENO

LA CENTRALINA GRUPPO ELETTROGENO PERMETTE IN PRIMO LUOGO LA PROTEZIONE DEL MOTORE PRIMO E DELL'ALTERNATORE. UNA CENTRALINA GRUPPO ELETTROGENO AVANZATA COMPRENDE INTERFACCE CANbus eMODbus, ED UN INSIEME DI INGRESSI-USCITE PROGRAMMABILI. UN PLC E PROPRIO PLC CHE GESTISCE IL GRUPPO ELETTROGENO.

CENTRALINA GRUPPO ELETTROGENO BE124

LA CENTRALINA GRUPPO ELETTROGENO BE124

La Be124 controlla la automazione del gruppo elettrogeno ed integra un registratore dati (Data Logger) ed un oscilloscopio. La Be124 ha segnalazioni ottiche per mezzo di indicatori chiamati LED e visualizzatore (Display) per mostrare i parametri del motore, misure elettriche, allarmi ed impostazioni. La Be124 è progettata per motori dotati di ECU (SAE J1939) ma è facilmente adattabile ai motori tradizionali. La Figura 1 illustra il pannello frontale.

IL DISPLAY

La Be124 è, oltre ad una centralina di controllo, un potente strumento di misura. Sono fornite sul display tutte le letture di tensione e correnti trifasi inclusa la corrente di dispersione o disequilibrio per mezzo di un TA aggiuntivo. Ovviemante il display indica anche tutti i parametri che interessano il motore. Le misure sono rilevate sui sensori analogici, se connessi, ma anche dal canbus se è collegato un motore dotato di ECU J1939 compatibile.

Be124 Power Measurements


OSCILLOSCOPIO

Per analisi particolari delle forma di onda, la Be124 offre la funzione oscilloscopio a 7 canali per tensioni trifase, correnti trifase e corrente del neutro.

BE124 FUNZIONE OSCILLOSCOPIO


CHIAVE AVVIAMENTO

Con la chiave di avviamento potete collegare direttamente il 50. Il contatto ha la capacità di 30 ampere. Tuttavia se avete intenzione di usare la funzione automatica dovete collegare il relè di comado alla apposita uscita. Non è ammesso usare simultaneamente la chiave e la funzione automatica.

THE BE124 KEY START GENERATOR CONTROLLER


PARTENZA PER BASSA TENSIONE BATTERIA

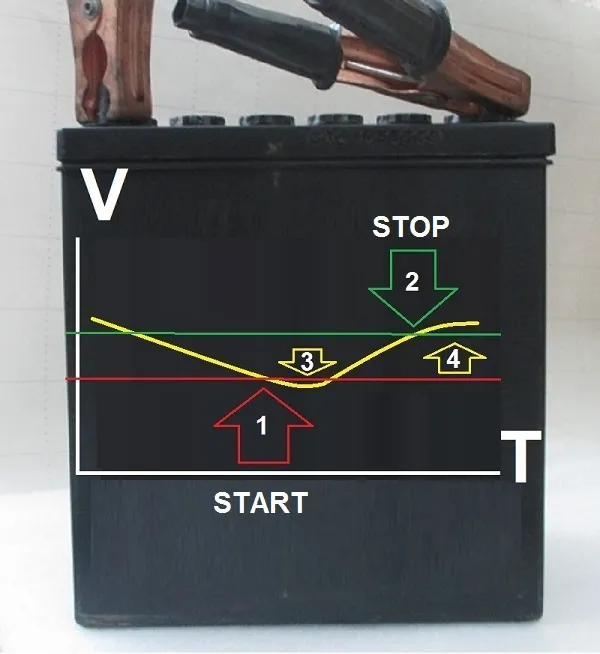

La Be124 è a tutti gli effetti un relè di minima tensione batteria programmabile. Potete quindi impostare i limiti per avere una partenza automatica adeguata a mantenre carica la battera del motore. Funzione indispensabile per i generatori in postazioni remote di alta montagna.

funzione monitoraggio batteria


CANBUS J1939

La Be124 dispone di interfaccia isolata a 1000V per il CANBUS. Ottima soluzione quindi per monitorare e telecomandare i vostri motori dotati di ECU compatibili con il protocollo J1939.

Be124 CANBUS J1939


INTERFACCIA MODBUS

First, we provide a full map of the MODBUS registers in a way that you can develop your remote control monitoring using the MODBUS communication protocol. The Be124 can directly drive up to 1000 meters of twisted cable. You can connect up to 24 generators on the same communication cable. Second, we offer software for remote control monitoring free of charge.

Be124 Modbus Monitoring


TELECONTROLLO GSM

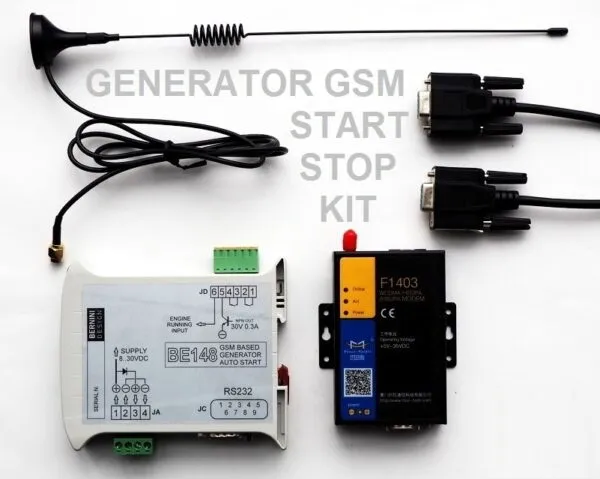

By connecting the Be16 GSM gateway, the Be124 will transform the alarms into SMS notifications. The Be124 will decode SMS to start and stop the generator according to your needs. Equally important, You will receive mobile notifications about all events that take place on the generator.

Be124 GSM_based remote control monitoring


STRUMENTI MOTORE

The Be124 features analogue configurable inputs. What's more, you can connect any kind of transducer with the scope to monitor the important parameters of the engine like oil pressure, temperature and fuel level,

Be124 Engine Instruments


REGISTRATORE DI TRANSIENTI

Using the embedded transient recorder you can analyze the key parameters of your generator like battery voltage during crank sequences, speed variation when you connect a load, oil pressure variation, charging alternator voltage and many others. Next, you can set up automatic start-stop of the data transient recorder.

Be124 data transient recorder


DATA LOGGER A 16 CANALI

The Be124 can record and store up to 16 channels of measurements including an energy counter.

ENERGY METER DATA LOGGER


LAVORA A 400Hz

Does not matter if it is for industrial, commercial, or avionic applications. The Be124 powerful CPU can calculate TRMs up to 600Hz. You can safely use the Be125 in a GPU application (Ground Power Unit Generator).

Be124 Generator Instruments


LA MEMORIA EVENTI

For a remote location, it is mandatory to store the main events. The Be124 has 3 non-volatile memory areas. This will allow you an extremely reliable way to record data. You can access this area of memory via TCP/IP or GSM.


SCHEDULAZIONI PROGRAMMABILI

Using the Be124 generator controller it is really easy to schedule time slots of the day to disable the generator start. In the same way, you can create a slot of time in which you start the generator to suit particular needs.


FORMA COMPATTA

Nobody is able today to make a so compact generator controller enclosed in a standard 96x96 DIN size enclosure.

Be124 Generator Controller Compact Size


 MANUAL E INSTALLAZIONE

BE124 GENERATOR CONTROLLER

Be124 LOW-BATTERY Generator Auto Start Controller

The Be124 generator controller is the appropriate solution when you have to refurbish the GAS-GASOLINE-DIESEL generator. In effect, it can monitor generators up to 1000kVA. In addition to standard configurable input & output, the Be124 complies with SAE J1939 via a fully isolated CANbus interface. In conclusion, the BE124 is the best option as long as you have to control a highly valuable generator.


TELECONTROLLO MODBUS

Generator control unit features RS485

In the above image the Be124 CENTURION generator controller together with the industrial grade MODBUS-UBS gateway. You can install up to 128 generators in an RS485 network. Each generator will be associated with a 'node'. The software can manage 127 nodes. By maintaining a baud rate at 19200 bps you can use a twisted pair long as much as 1000m. Each RS485 module is an intelligent repeater. You can theoretically make a chain of 127 kilometres without losing digital information and accuracy.


TELECONTROLLO TCP/ip

The Be124 CENTURION generator controller is a generator Programmable Logic Controller. It features over 200 programmable functions. By changing the settings you can modify the logical functions of control and protection. You can modify the parameters on-site via keyboard or remotely via MODBUS. The parameters are stored in a multi-level non-volatile memory. The data are automatically and continuously verified. In case of inconsistency, a warning will be generated by the PLC.

the Be124 CENTURION GENERATOR PLC

In the above image the TCP/IP server with an encrypted HTTPS server.


LA CENTRALINA GRUPPO ELETTROGENO BE1

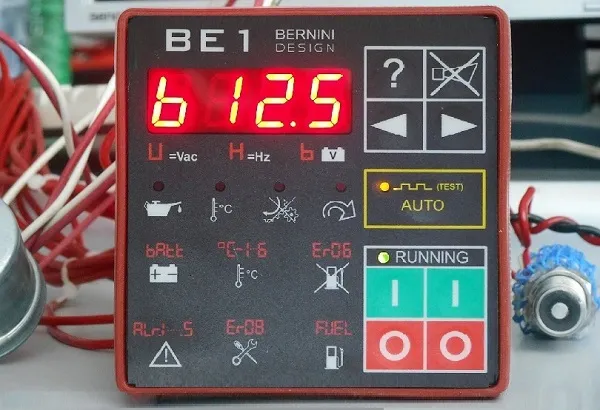

Le centralina gruppo elettrogeno Be1 è costruita nel formato DIN 96mm. Dispone di display a 4 cifre, 6 indicatori a LED e pulsanti di comando. I pulsanti di  START e STOP sono doppi per garantire maggiore durata. Non è certo comparabile a livello di prestazioni con la Be124. Tuttavia la Be1 è da considerare una centralina gruppo elettrogeno di tipo avanzato grazie alla potente interfaccia RS485 che rende questa centralina indispensabile in impianti di telecontrollo solare ove i gruppi elettrogeni sono collegati sulla stessa linea di comunicazione a distanza di centinaia di metri l'uno dall'altro. Il software di gestione è fornito gratuitamente.

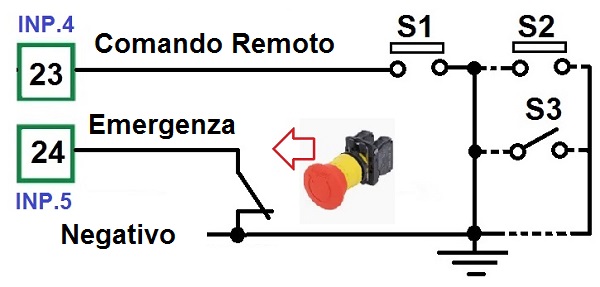

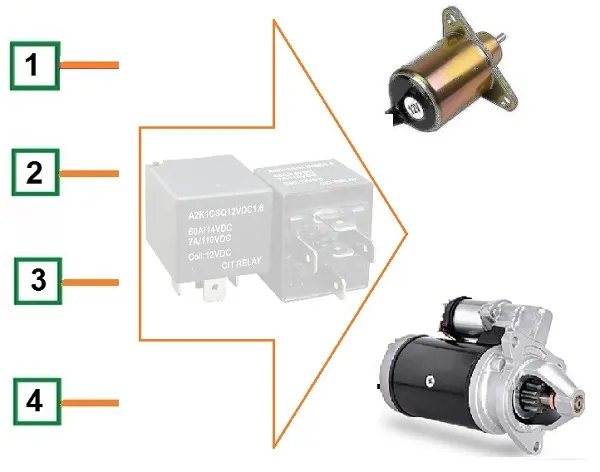

CENTRALINA GRUPPO ELETTROGENO BE1La centralina gruppo elettrogeno Be1 arresta il motore in caso di allarmi motore o generatore. La Be1 è dotata di 5 ingressi e 4 uscite totalmente programmabili. Gli ingressi sono di tipo ambivalente, ossia sia digitali che analogici.

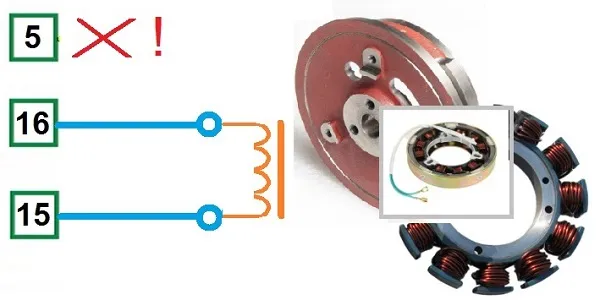

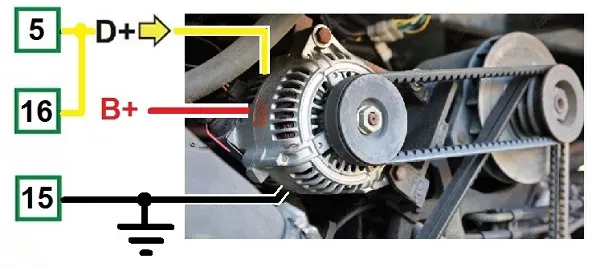

BE1 Manuale Installazione

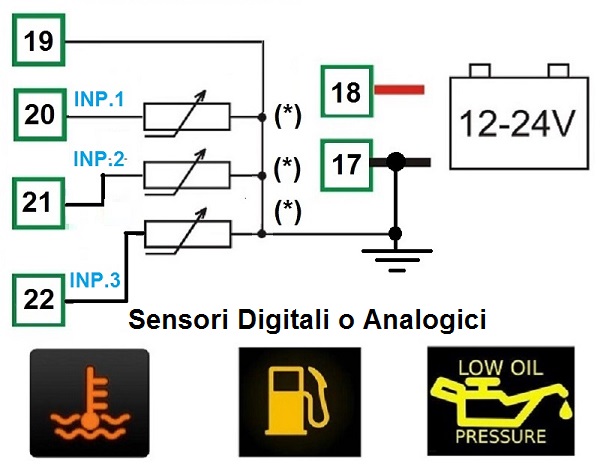

In fase di programmazione potete quindi associare questi ingressi a sensori analogici per la misura di pressione olio, temperatura e livello carburante.La interfaccia RS485 supporta il protocollo MODBUS. La memoria eventi registra gli ultimi 100 allarmi in ordine di tempo.


BE1 VERSIONE BASE

169€


Se utilizzate la centralina per applicazioni di telecontrollo ordinate la versione dotata di interfaccia RS485

BE1+MODbus

199€




La Be1 ha un display funzionante da -30°C a + 70°C.  La superficie puo' raggiungere anche 85°C  per lughi periodi.  La protezione è IP65. I comadi doppi di START e STOP consentono oltre un milione di operazioni. La navigazione del display è intuitiva. Gli allarmi principali sono indicati da LED ad alta luminosità. Il display indica informazioni e codici di errore.  Funzionalità salienti:  -  Controlla 28 allarmi e registra gli ultimi 100 eventi -  Indica Vac fino a 600V e frequenza fino a 70Hz  -   Service e test periodico  -  MODBUS  -  Per motori Benzina, Diesel e Gas -  Ingressi/Uscite Programmabili -  Connessione Pick Up  / 'W'  -  Registra in modo permanente gli ultimi 100 eventi.


CENTRALINA GRUPPO ELETTROGENO DA CANTIERE

SE LA TUA APPLICAZIONE RISULTA GRAVOSA, AD ESEMPIO UN GUPPO ELETTROGENO DA CANTIERE, CONSIGLIAMO DI CONSULTARE LE CARATTERISTICHE DELLA CENTRALINA  BE24. PRODOTTA IN DECINE DI MIGLIAIA DI PEZZI RAPPRESENTA DOPO 20 ANNI DALLA SUA PROGETTAZIONE UN PRODOTTO INIMITABILE PER PRESTAZIONI E SICUREZZA

CENTRALINA GRUPPO ELETTROENGO BE24

CENTRALINA GRUPPO ELETTROGENO DOTATA DI CHIAVE


CENTRALINA GRUPPO ELETTROGENO DOTATA DI CONTROLLO RETE E CANBUS

SE LA TUA APPLICAZIONE RICHIEDE UN ALTO LIVELLO DI AUTOMAZIONE CHE COMPRENDA ANCHE IL CONTROLLO DELLA RETE, CONSIGLIAMO LA VISIONE DELLA CENTRALINA GRUPPO ELETTROGENO BEK3. DISPONE DI AMPIE SOLUZIONI DI INTERFACCIA RS485 E CANBUS CON SUPPORTO AL PROTOCOLLO J1939

CENTRALINA GRUPPO ELETTROGENO BEK3

CENTRALINA GRUPPO ELETTROGENO E CONTROLLO RETE
